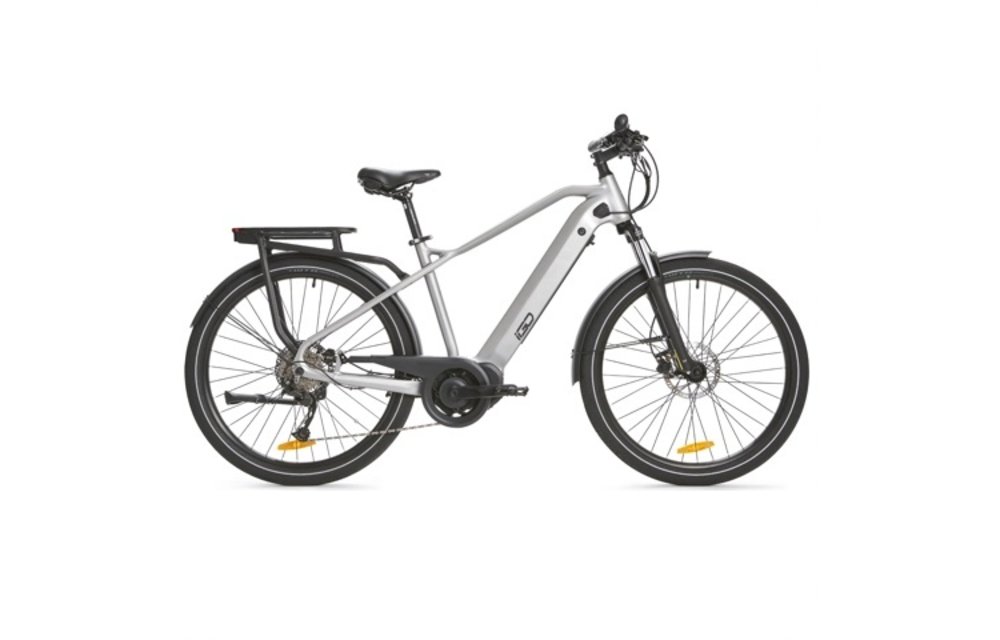

Unlock a new level of cycling performance with the Yorkville LS. Designed for the urban cyclist who wants to push their limits, this mid-drive equipped hybrid eBike is perfect for daily commutes, leisure rides, and even light trail riding. With its natural pedal feel, the Yorkville LS enhances your riding experience with a familiar and comfortable ride quality. Whether you're looking to go further, ride more, or tackle steep inclines with ease, the Yorkville LS is equipped to help you achieve your goals.
Revolutionize your ride with the iGO LS Motor! This sleek, city-tuned motor is smooth, responsive, and specifically designed to tackle the demands of city riding. Need a quick boost of power? No problem, just give the throttle a push! And with a powerful 48V and 100Nm of torque, you'll have all the energy you need for a fully customizable ride experience.
720WH REMOVABLE BATTERY
Commuting to work, running errands, or exploring the city, you'll have the power you need to keep going. With a 720Wh capacity, you'll experience less "range anxiety" and more freedom to roam. The integrated design ensures better security from theft, while also providing optimized weight distribution for a more stable and smoother ride. With less frequent charging required, you'll have more time to focus on the ride and less time tethered to a power outlet.
Specifications
| FRAMESET |
|---|
| FRAME | Hydroformed Alloy, 27.5 Hybrid frame, internal cable routing head tube ported, removable down tube battery with security lock, accessory ready rear cargo rack |
| COLOR | Platinum |
| FORK | RST BLAZE-27.5TNL-15, 80mm travel, lockout, Thru Axle |
| DRIVETRAIN |
|---|
| SHIFTERS | SHIMANO ALIVIO 9-speed Rapidfire Plus |
| CHAINRINGS | 42T with Narrow Wide teeth |
| CHAIN | KMC E9-S |
| REAR DERAILLEUR | SHIMANO ALIVIO 9-speed |
| CASSETTE | SHIMANO ALIVIO 9-speed 11-34T |
| COMPONENTS |
|---|

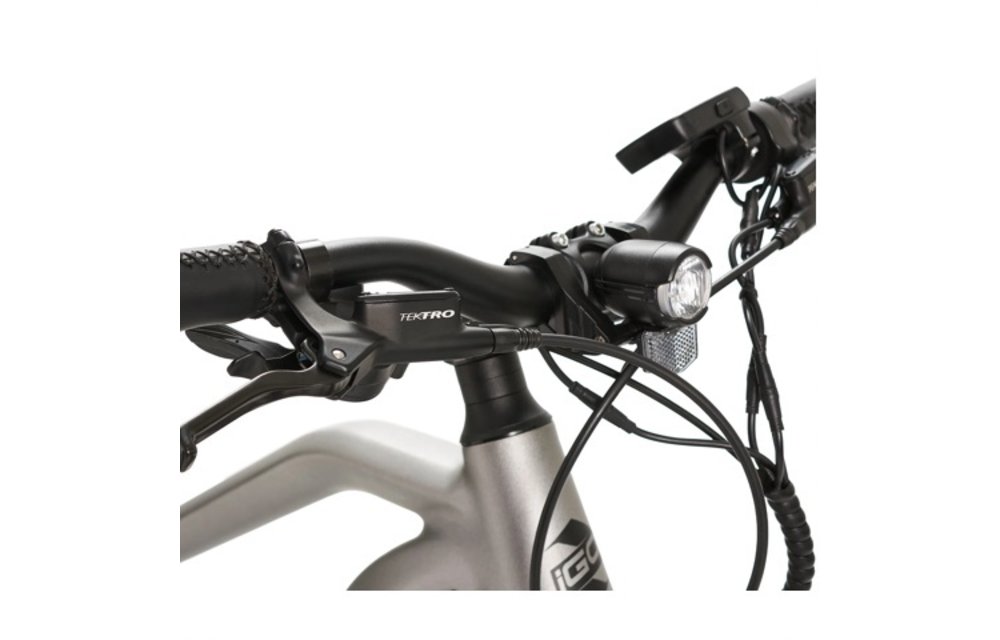

| HANDLEBAR | 640mm, 45mm rise, 31.8mm dia. |
| GRIPS | VELO, Ergonomic, 135mm |
| STEM | 80mm with 7 degree rise |
SEAT POST |
31.6mm (350mm) |
| SADDLE | SELLE ROYAL Rio |
| BRAKE LEVERS | TEKTRO HDE350 with power cut off switch |
| BRAKE CALIPERS | TEKTRO HDE350 Hydraulic Disc |
| ROTORS |
180mm |
| WHEELS |
|---|
| TIRES | WTB GROOV-E 27.5”x2.4”, 60tpi |
| RIMS | 27.5”, Dual Wall Alloy, black |
| ELECTRIC TECHNOLOGY |
|---|
| BLUETOOTH | NEW iGO Mobile App (Android and iOS). Customizable profile and performance settings with full diagnostic monitoring and alerts. |
| DISPLAY UNIT | 2” HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist |

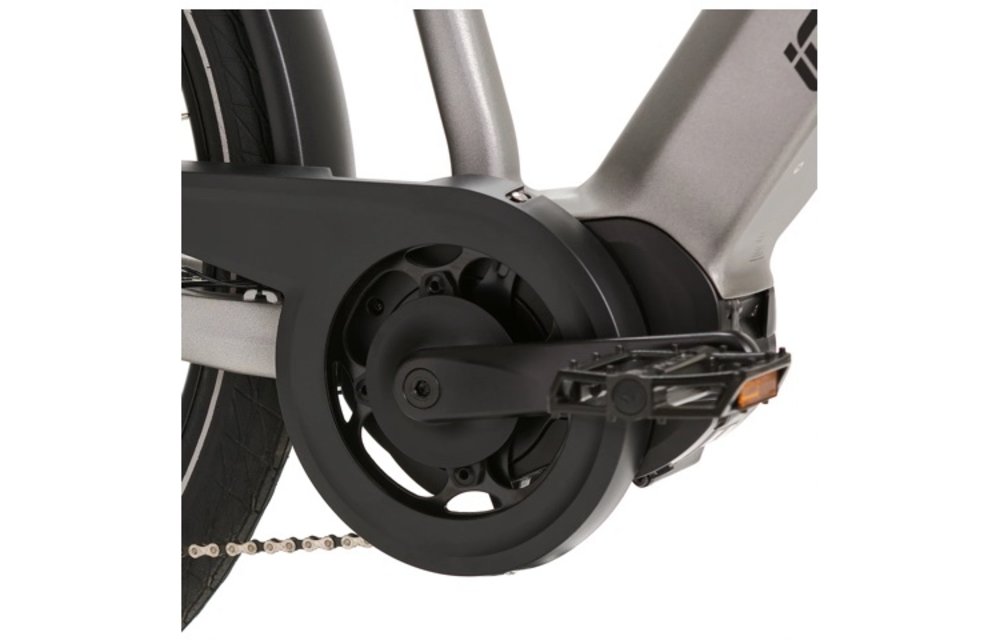

| MOTOR | iGO DRIVE LS 350W Mid-Motor, 48V |
| TORQUE | up to 100Nm |
| BATTERY | 5000mAh SAMSUNG cell, removable with security lock (48V | 15Ah | 720Wh) |
| RANGE | 110km (69mi) * |
| PEDAL ASSIST SYSTEM | Eco/Tour/Sport/Turbo/Boost color coded per PAS level |
| THROTTLE | On-Demand, Removable |
| SENSOR | Internal Torque, Cadence, Speed |
| CLASS | Class2 / Class1 optional / Class3 capable where permitted ** |
| OTHER |
|---|

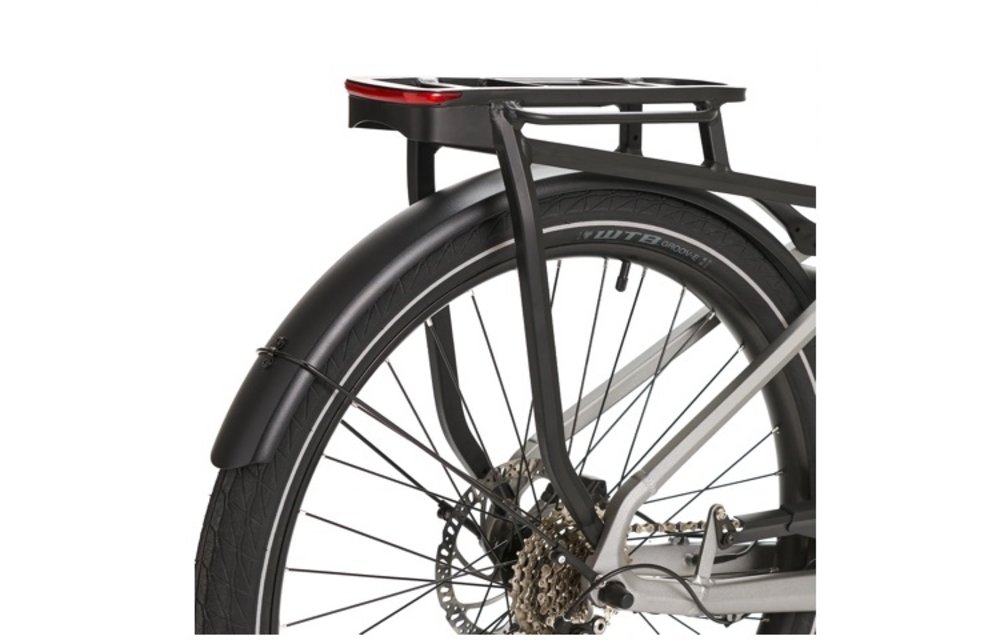

| ACCESSORIES (INCLUDED) | Front LED light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with brake light Integrated into rear rack (powered by main battery), Front & Rear Fenders, Rear Cargo Rack Accessory ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger |
| BIKE WEIGHT (without battery) | 25.5kg (56.2 lbs) |
WEIGHT CAPACITY | 125kg (275 lbs) |
| BATTERY WEIGHT | 3.5kg (7.7 lbs) |
